DT06-4S
Manufacturer:
TE Connectivity
Mfr.Part #:
DT06-4S
Datasheet:
Description:

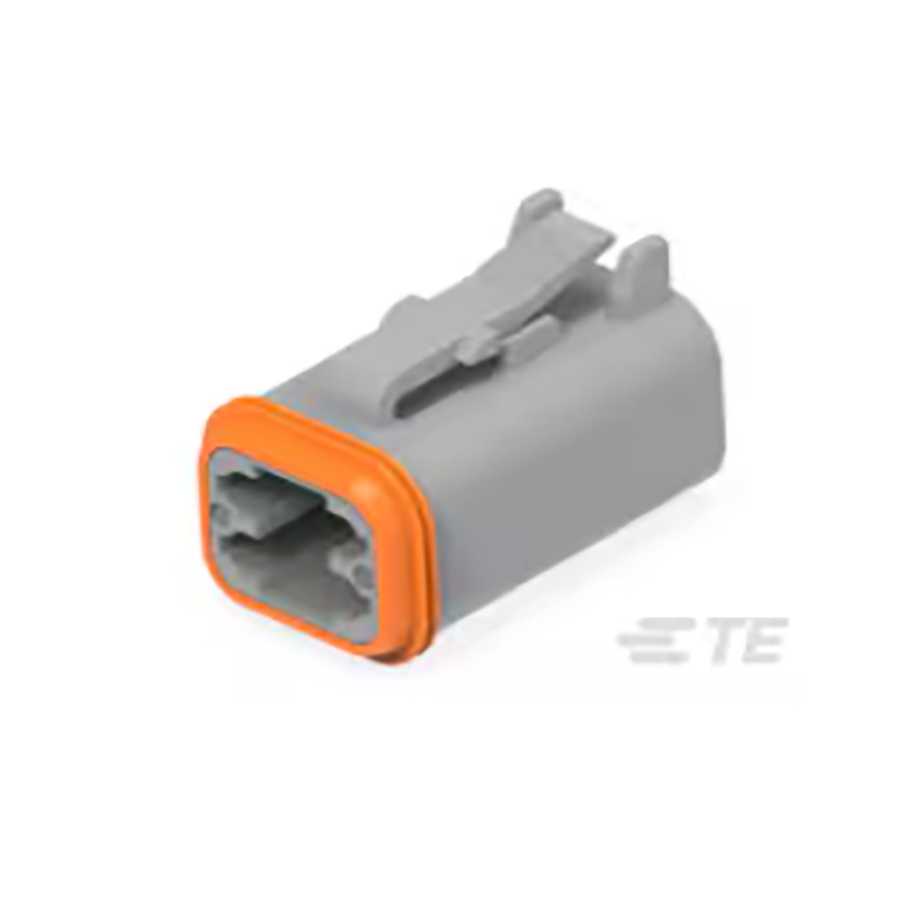

Automotive Connectors Free Hanging Number of Positions:4 Male
| Parameter | Value |
|---|---|
| Length | 18.1864 mm |
| Width | 18.39 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 30.94 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 4.445 mm |
| Current Rating | 13 A |
| Flammability Rating | UL94 V-0 |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Grey |
| Gender | Male |
| ELV | Compliant |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
Stock: 24376
Distributors
pcbx
pcbxUnit Price$1.16441
Ext.Price$1.16441
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.16441 | $1.16441 |
| 10 | $1.05755 | $10.57550 |
| 25 | $1.00113 | $25.02825 |
| 50 | $0.92589 | $46.29450 |
| 100 | $0.90110 | $90.11000 |
| 300 | $0.85278 | $255.83400 |
| 500 | $0.80706 | $403.53000 |
| 1000 | $0.76944 | $769.44000 |
